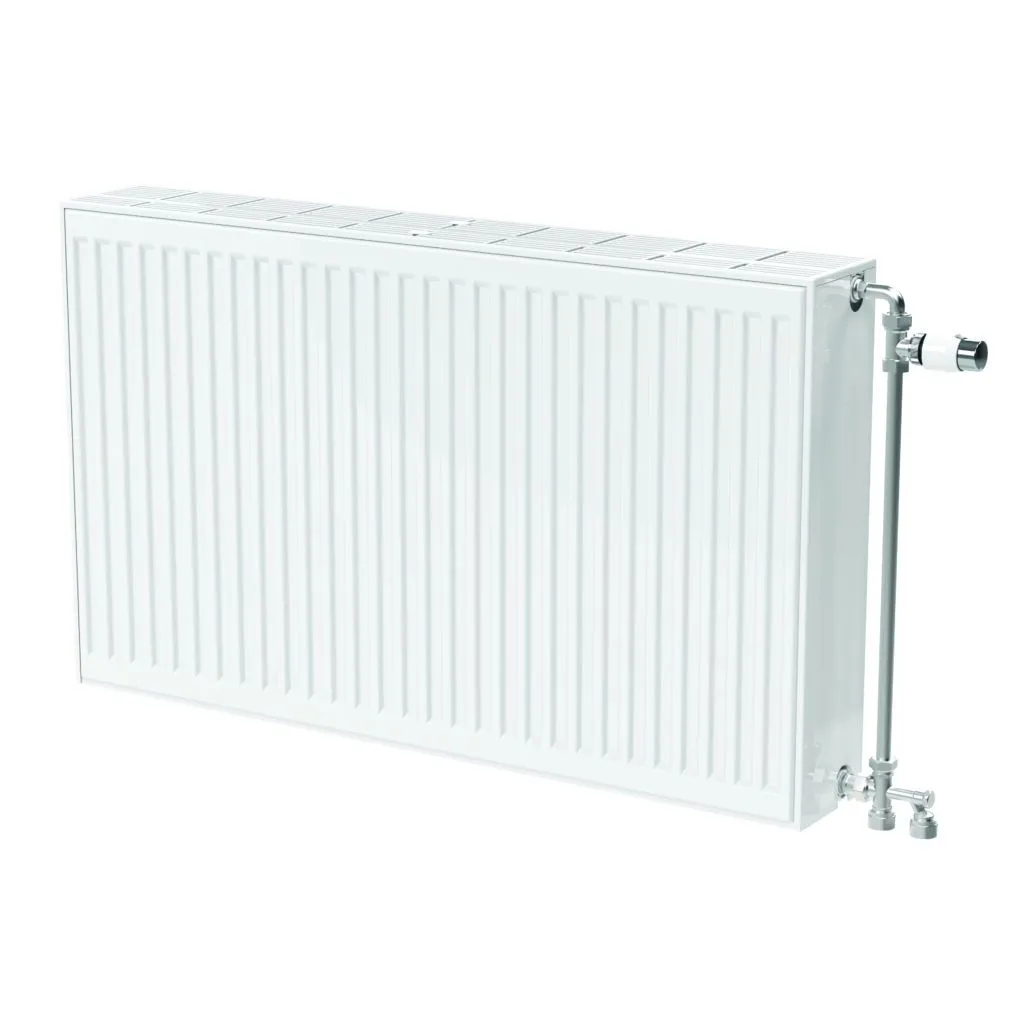

Compact All In Radiator
The Compact All In is a Stelrad enclosed panel radiator for space heating applications. It features a top grille and side panels with a clean, child-friendly finish, and is available in a range of types, heights and lengths based on the available technical data.
Correct radiator selection should be based on the heat loss of the space, the system operating temperatures, and the available installation dimensions.
Features:
- Horizontal radiator
- Profiled front
- Child-friendly enclosure
- Available in colour
Official technical documents are available in the downloads section. Heat outputs and final dimensions must be confirmed from the official Stelrad documents before ordering.
For availability, technical details and correct radiator selection for the installation, contact Thomas Moudouros Ltd.
Technical table
| Item | Detail |
|---|---|
| Product: | fully encased compact radiator |
| Finishing: | upper grille and side panels |
| Also supplied: | VDI brackets with anti-lift (type Monclac), screws, plugs, air vent, blind plug and installation instructions |
| Connections: | 4 x ½" female connection |
| Lugs: | 2 pairs of mounting lugs up to 1.600 mm and 3 pairs from 1.800 mm |
| Packaging: | Every radiator is sturdily packaged in high-quality cardboard and wrapped in plastic. The radiator's characteristics are shown on the label: type – height – length. |
| Warranty: | 10 years, as long as the installation instructions have been followed and Stelrad's warranty conditions have been met. |
| Paint process: | All radiators are degreased, phosphated, cataphoretically primed and powder-coated in Stelrad white 9016 as standard. |
| Colours: | Stelrad white 9016 + 35 different Stelrad colours and about 200 RAL-colours are possible |
| Heat cost allocator: | Suitable for heat cost allocators, both electronic and according to the evaporation principle (covered by the norm of EN834 & EN835). |
| Max. operating pressure: | 10 bar (tested to 13 bar) |
| Max. operating temperature: | 110 °C |
| Conformity: | in accordance with EN442 |
| Quality assurance: | NF |
| Types: | 11 | 21 | 22 | 33 |
| Heights: | 300 | 400 | 500 | 600 | 700 | 900 mm |
| Lengths: | 400 – 3.000 mm |
| Depths: | 61 | 77 | 100 | 158 mm |
Technical documents (8)
For an accurate quote, send us
- Where the product will be used
- Quantity or dimensions where available
- Photos, drawings or material list if available
- Whether you need store collection or delivery
